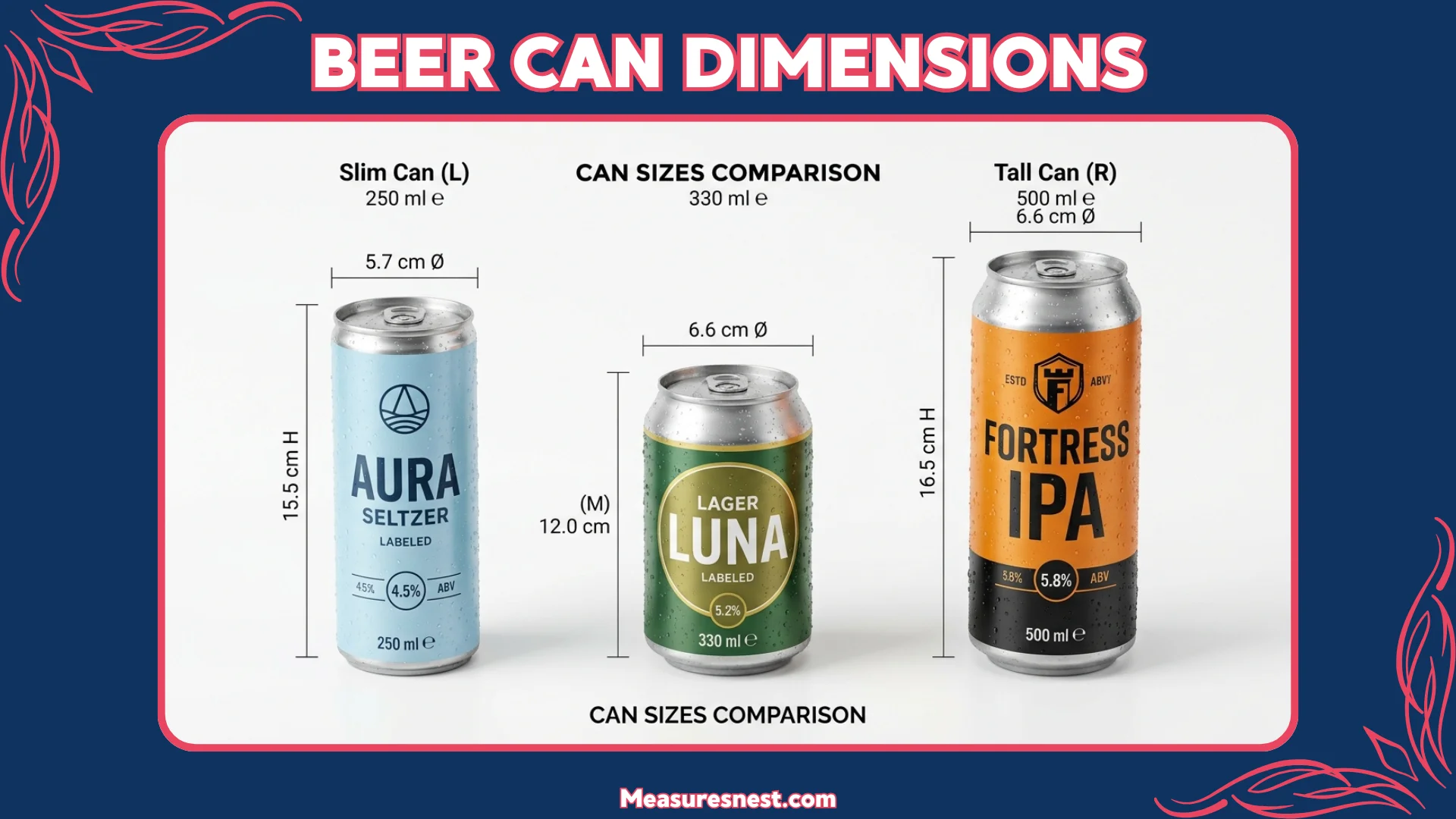

Beer Can Dimensions: Sizes, Width, Heights & Diameters 2026
A standard 12 oz beer can stands 4.812 inches (12.2 cm) tall with a 2.602-inch (6.6 cm) diameter the most recognized beverage container on the planet. It fits exactly in your hand, slides into every standard cup holder, and stacks perfectly in any cooler or refrigerator shelf.
Whether you’re designing custom can labels, planning bar storage layouts, or comparing formats before your next product launch, knowing exact beer can dimensions gives you an instant reference point. Let’s explore every size, from the tiny 8 oz mini can to the giant 32 oz crowler, that perfectly demonstrates this iconic measurement.
Quick Reference: Beer Can Dimensions
| Format | Volume | Height | Diameter | Body Diameter |
|---|---|---|---|---|
| Mini / Stubby | 8 oz (237 ml) | 3.625 in / 9.2 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| Standard 12 oz | 12 oz (355 ml) | 4.812 in / 12.2 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| 12 oz Sleek | 12 oz (355 ml) | 6.125 in / 15.6 cm | 2.260 in / 5.74 cm | 2.094 in / 5.32 cm |
| Tallboy 16 oz | 16 oz (473 ml) | 6.190 in / 15.7 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| 16 oz Sleek | 16 oz (473 ml) | 6.940 in / 17.6 cm | 2.260 in / 5.74 cm | 2.094 in / 5.32 cm |
| 19.2 oz Stovepipe | 19.2 oz (568 ml) | 6.940 in / 17.6 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| 24 oz | 24 oz (710 ml) | 7.625 in / 19.4 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| 25 oz | 25 oz (739 ml) | 7.940 in / 20.2 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| 28 oz | 28 oz (828 ml) | 8.812 in / 22.4 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
| 32 oz Crowler | 32 oz (946 ml) | 7.750 in / 19.7 cm | 3.562 in / 9.05 cm | 3.250 in / 8.26 cm |
| 16.9 oz (500 ml) | 16.9 oz (500 ml) | 6.380 in / 16.2 cm | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm |
12 oz Beer Can Dimensions (The Standard)
The 12 oz standard beer can is the baseline for all beer can measurements. It holds 355 ml (12 fl oz) exactly the same volume as a standard beer bottle. You find this size in every grocery store, gas station, and stadium in America.
Height and Diameter of 12 oz Cans
The standard 12 oz can stands 4.812 inches (12.2 cm) tall. That is almost exactly the same height as a standard smartphone lying flat. The outside diameter measures 2.602 inches (6.6 cm) comfortably smaller than a tennis ball, which is 2.7 inches (6.86 cm) across.
The body diameter (the narrower middle section) measures 2.343 inches (5.95 cm). The can’s top and bottom are wider than the body, giving it the classic “necked” shape. This design uses less aluminum and keeps the can strong at the same time.
Packaging engineers and can manufacturers use these exact dimensions daily. The 12 oz standard can fits perfectly inside every standard American cup holder, designed to 2.75 inches (6.99 cm) wide. Millions of these cans move through production lines every hour worldwide.

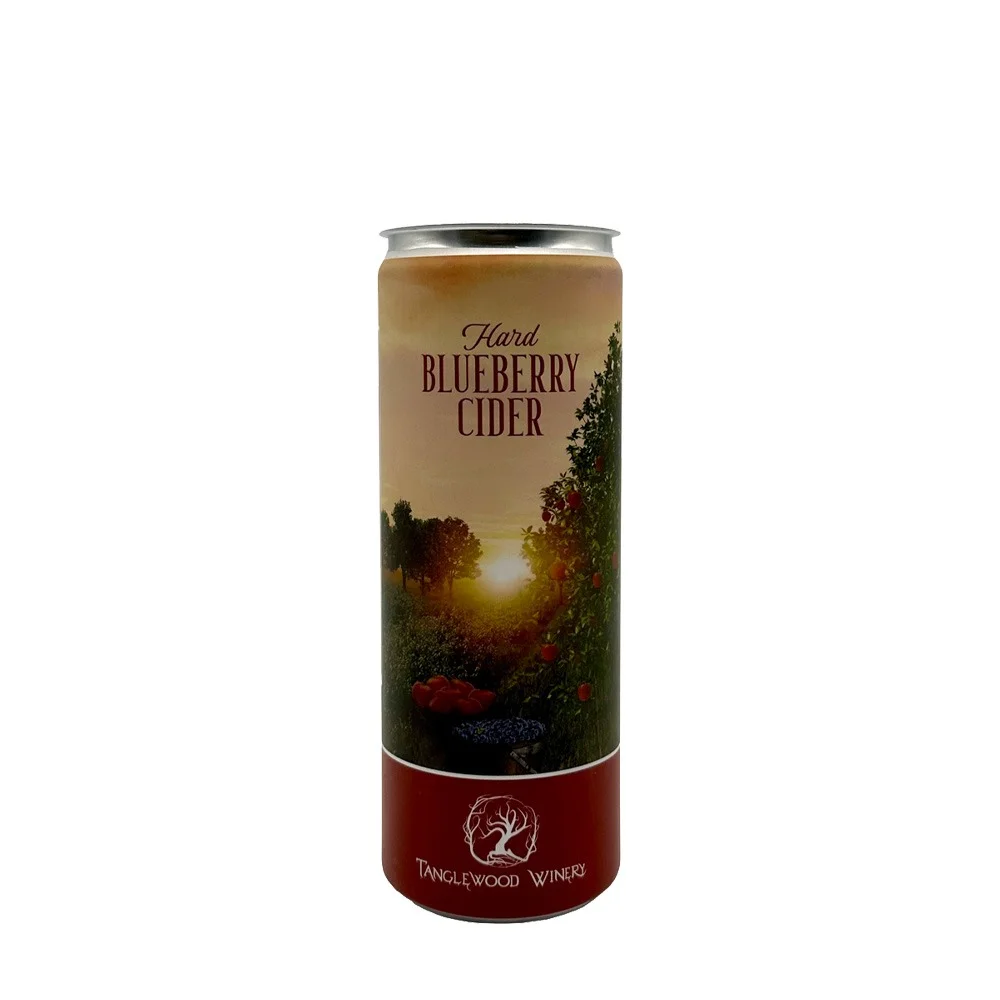

12 oz Sleek Can Dimensions
The 12 oz Sleek can holds the same 355 ml (12 fl oz) but looks completely different. It stands taller at 6.125 inches (15.6 cm) nearly 1.3 inches (3.3 cm) taller than the standard format. The trade-off is a narrower body at just 2.260 inches (5.74 cm) in diameter.
Craft breweries and premium beer brands prefer the sleek format. The taller, slimmer profile gives cans a more elegant, modern look on store shelves. Graphic designers love the extra vertical canvas for label artwork and branding.
The sleek can does not fit in a standard cup holder designed for the 2.602-inch (6.6 cm) diameter format. Its 2.094-inch (5.32 cm) body diameter is noticeably thinner when you hold it.
16 oz Beer Can Dimensions (Tallboy)
The 16 oz Tallboy is the second most popular beer can format in the USA. It holds 473 ml (16 fl oz) — exactly one American pint. You see this format heavily in craft beer taprooms, convenience stores, and stadium concession stands.
Standard 16 oz Can Measurements
The standard 16 oz Tallboy stands 6.190 inches (15.7 cm) tall. That is almost exactly the length of a standard ballpoint pen (5.98 inches / 15.2 cm), just slightly longer. The diameter stays identical to the 12 oz standard at 2.602 inches (6.6 cm) meaning it fits the same cup holders.
The Tallboy is simply a taller version of the standard 12 oz can. The body diameter stays consistent at 2.343 inches (5.95 cm).
Craft breweries sell over 60% of their packaged beer in 16 oz Tallboys as of 2026. Consumers associate the 16 oz can with craft beer culture and single-serving portions. The 6.190-inch (15.7 cm) height stacks efficiently in four-pack and six-pack carriers.
16 oz Sleek Can Dimensions
The 16 oz Sleek Tallboy combines maximum volume with the slim profile. It stands 6.940 inches (17.6 cm) tall nearly as tall as a standard ruler (12 inches / 30.5 cm) at more than half its length. The diameter narrows to 2.260 inches (5.74 cm).
Premium hard seltzers, energy drinks, and imported beers frequently use this format. The extra height makes it one of the tallest single-serve cans on the market. At 6.940 inches (17.6 cm), this can is exactly 2.128 inches (5.4 cm) taller than a standard 12 oz can.
Large Format Beer Can Dimensions
19.2 oz Beer Can Size
The 19.2 oz Stovepipe can holds 568 ml exactly one imperial pint. Stadiums and arenas sell this format almost exclusively. You find it at every MLB, NFL, and NBA venue across the country.
The Stovepipe stands 6.940 inches (17.6 cm) tall with the standard 2.602-inch (6.6 cm) diameter. It is the same height as the 16 oz Sleek can but significantly wider. The single-serve size works perfectly for one-time purchases at sports events no refills needed.
Stadium vendors and concession planners account for the 6.940-inch (17.6 cm) height when designing cooler layouts. This can holds 59.5% more beer than a standard 12 oz can.

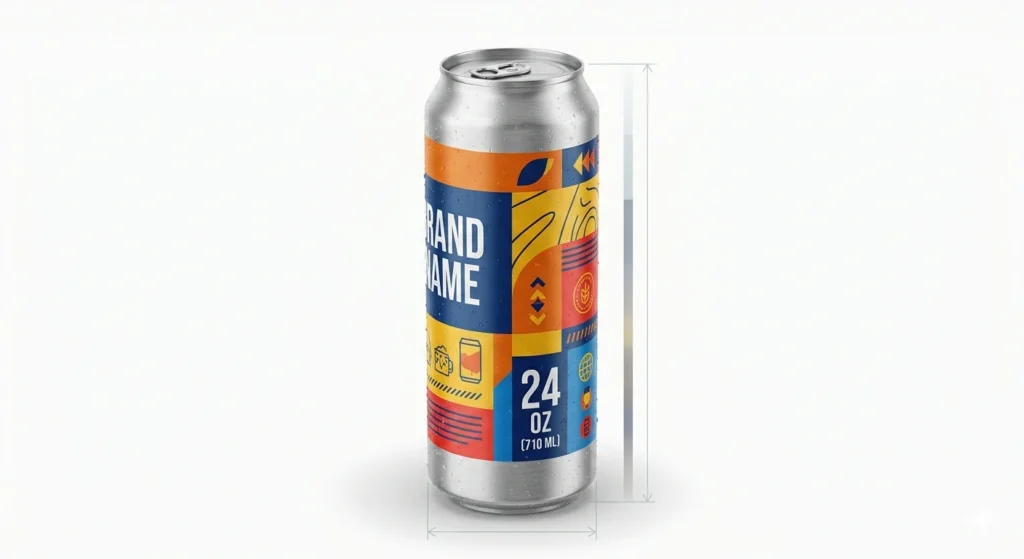

24 oz Beer Can Dimensions
The 24 oz can holds 710 ml exactly two full American servings. It stands 7.625 inches (19.4 cm) tall with the same 2.602-inch (6.6 cm) diameter as the 12 oz and 16 oz standard cans. At this height, the can is almost exactly as tall as a standard 8-inch (20.3 cm) chef’s knife.
Budget beer brands and value-focused products dominate the 24 oz format. You see brands like Bud Light, Coors, and Busch heavily using this size for single-can retail sales. The standard diameter keeps packaging costs low while doubling the product volume.
The 7.625-inch (19.4 cm) height makes this can noticeably larger than a Tallboy. Standing two 12 oz cans end-to-end gives you 9.624 inches (24.4 cm) about 2 inches taller than one 24 oz can.
25 oz and 28 oz Beer Cans
The 25 oz can stands 7.940 inches (20.2 cm) tall slightly taller than a standard school ruler. It holds 739 ml and uses the standard 2.602-inch (6.6 cm) diameter. You find this size in imported European beers sold in American grocery stores.
The 28 oz can pushes even further at 8.812 inches (22.4 cm) tall. That height equals almost exactly three standard hockey pucks stacked on top of each other. It holds 828 ml (28 fl oz) nearly a full liter and maintains the consistent 2.602-inch (6.6 cm) diameter.
Both formats target value-conscious buyers at convenience stores and gas stations. The 28 oz can is one of the tallest standard-diameter cans you can buy at retail. Shelf planners must account for the 8.812-inch (22.4 cm) height in cooler door layouts.
Specialty Beer Can Dimensions
8 oz Mini Beer Can Size
The 8 oz Mini can stands just 3.625 inches (9.2 cm) tall. That is shorter than a standard index card, which measures 5 inches (12.7 cm) tall. The diameter stays at the standard 2.602 inches (6.6 cm) the same as a 12 oz can making it look like a squished version of the classic.
Mini cans target portion-controlled drinkers and variety pack buyers. Brands like Heineken and Corona sell mini can variety packs at premium prices. Event planners also love the small format for weddings, corporate events, and tastings where full cans would feel excessive.
The 3.625-inch (9.2 cm) height makes it the shortest standard-diameter beer can in production. Standing a 12 oz can next to an 8 oz mini shows a dramatic 1.187-inch (3.0 cm) height difference.
16.9 oz (500ml) Beer Can Dimensions
The 16.9 oz (500 ml) can is the metric-standard European format. It stands 6.380 inches (16.2 cm) tall with the standard 2.602-inch (6.6 cm) diameter. You find this size in imported beers especially German, Czech, and British lagers sold in US specialty retailers.
The 500 ml can is just slightly shorter than the 16 oz Tallboy. The difference is 0.19 inches (4.8 mm) barely noticeable side-by-side. European breweries standardize on this format because it aligns with metric packaging and shipping regulations.
Importers and specialty beer retailers must account for this subtle size difference when mixing 16 oz and 500 ml cans on the same display shelf. The 6.380-inch (16.2 cm) height stacks in the same carriers as a 16 oz Tallboy.

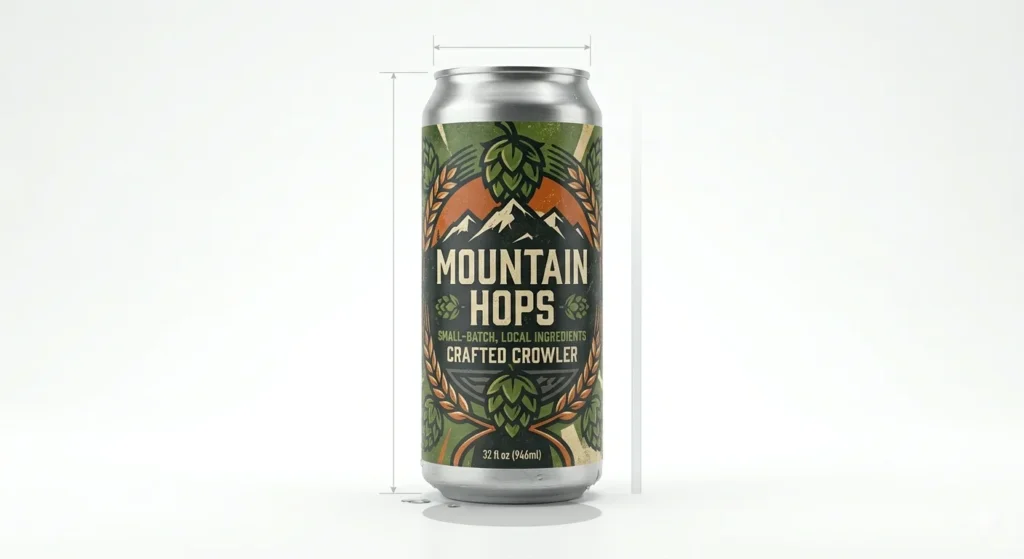

32 oz Crowler Dimensions
The 32 oz Crowler is the largest single-serve beer can format. It stands 7.750 inches (19.7 cm) tall and measures 3.562 inches (9.05 cm) in diameter significantly wider than any standard beer can. The wider body gives it a squat, robust look compared to the tall, slim Tallboy.
Craft brewery taprooms fill Crowlers fresh on-site, similar to a growler but in a can. The wide 3.562-inch (9.05 cm) diameter does not fit standard cup holders or most can koozies. Taproom staff use specialized Crowler seaming machines to seal each can individually at the point of sale.
The Crowler holds 946 ml (32 fl oz) exactly two American pints. The 7.750-inch (19.7 cm) height makes it nearly as tall as a standard 28 oz can but much wider.
Beer Can Diameter Explained
Standard Beer Can Diameter Measurements
Every standard beer can from 8 oz to 28 oz uses the same 2.602-inch (6.6 cm) outside diameter. This consistency is intentional. It means every standard can fits the same cup holders, koozies, can coolers, and packaging machinery.
The body (mid-section) of every standard can narrows to 2.343 inches (5.95 cm). The top and bottom flanges are wider to allow the lid to seal.
Sleek vs. Standard Diameter
The Sleek can format uses a noticeably narrower diameter of 2.260 inches (5.74 cm) on the outside. The body narrows further to 2.094 inches (5.32 cm). The difference between sleek and standard is 0.342 inches (8.7 mm) about the thickness of four stacked quarters.
Here is a direct comparison:
| Format | Outside Diameter | Body Diameter | Fits Standard Cup Holder? |
|---|---|---|---|
| Standard (all sizes) | 2.602 in / 6.6 cm | 2.343 in / 5.95 cm | ✅ Yes |
| Sleek | 2.260 in / 5.74 cm | 2.094 in / 5.32 cm | ⚠️ Loose fit |
| Crowler | 3.562 in / 9.05 cm | 3.250 in / 8.26 cm | ❌ No |
You can feel the sleek can’s narrower profile immediately in your hand. Standard can koozies fit loosely on sleek cans. Sleek-specific koozies are available but sold separately.
Comparing Beer Can Sizes
Volume differences create dramatic height variations. A 24 oz can stands nearly twice as tall as a 12 oz standard. Here’s how beer can heights compare:
| Can Format | Volume | Height | Difference vs 12 oz Standard |
|---|---|---|---|
| 8 oz Mini | 237 ml | 3.625 in / 9.2 cm | −1.187 in / −3.0 cm shorter |
| 12 oz Standard | 355 ml | 4.812 in / 12.2 cm | Baseline |
| 12 oz Sleek | 355 ml | 6.125 in / 15.6 cm | +1.313 in / +3.3 cm taller |
| 16 oz Tallboy | 473 ml | 6.190 in / 15.7 cm | +1.378 in / +3.5 cm taller |
| 16 oz Sleek | 473 ml | 6.940 in / 17.6 cm | +2.128 in / +5.4 cm taller |
| 19.2 oz Stovepipe | 568 ml | 6.940 in / 17.6 cm | +2.128 in / +5.4 cm taller |
| 24 oz | 710 ml | 7.625 in / 19.4 cm | +2.813 in / +7.1 cm taller |
| 25 oz | 739 ml | 7.940 in / 20.2 cm | +3.128 in / +7.9 cm taller |
| 28 oz | 828 ml | 8.812 in / 22.4 cm | +4.000 in / +10.2 cm taller |
| 32 oz Crowler | 946 ml | 7.750 in / 19.7 cm | +2.938 in / +7.5 cm taller |
The 28 oz can is the tallest standard-diameter format at 8.812 inches (22.4 cm). The 8 oz Mini is the shortest at just 3.625 inches (9.2 cm). The full range spans 5.187 inches (13.2 cm) from shortest to tallest.

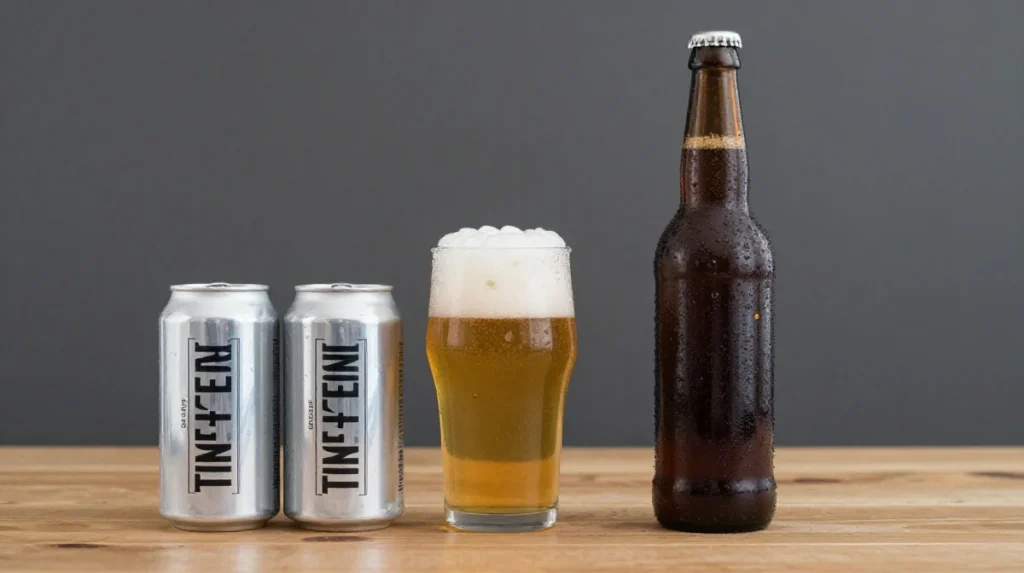

Beer Can Size vs. Bottle Size
Beer bottles and cans hold the same volumes but look very different. A standard 12 oz beer bottle stands 9.0 inches (22.9 cm) tall nearly twice the height of a 12 oz standard can at 4.812 inches (12.2 cm). The bottle’s narrow neck accounts for most of that extra height.
A 22 oz “bomber” bottle stands 11.5 inches (29.2 cm) tall. No standard beer can comes close to that height. The tallest standard beer can the 28 oz at 8.812 inches (22.4 cm) still stands 2.688 inches (6.8 cm) shorter than a bomber bottle.
| Format | Volume | Height | Diameter |
|---|---|---|---|
| 12 oz Standard Can | 355 ml | 4.812 in / 12.2 cm | 2.602 in / 6.6 cm |
| 12 oz Long Neck Bottle | 355 ml | 9.0 in / 22.9 cm | 2.375 in / 6.03 cm |
| 16 oz Tallboy Can | 473 ml | 6.190 in / 15.7 cm | 2.602 in / 6.6 cm |
| 22 oz Bomber Bottle | 651 ml | 11.5 in / 29.2 cm | 3.0 in / 7.6 cm |
| 32 oz Crowler Can | 946 ml | 7.750 in / 19.7 cm | 3.562 in / 9.05 cm |
| 64 oz Growler Jug | 1,893 ml | 10.5 in / 26.7 cm | 5.0 in / 12.7 cm |
Cans are consistently shorter and wider than their equivalent-volume bottles. This makes cans easier to stack, store, and chill quickly. A can chills to serving temperature about 30% faster than a bottle of the same volume.
Regional Variations in Beer Can Dimensions

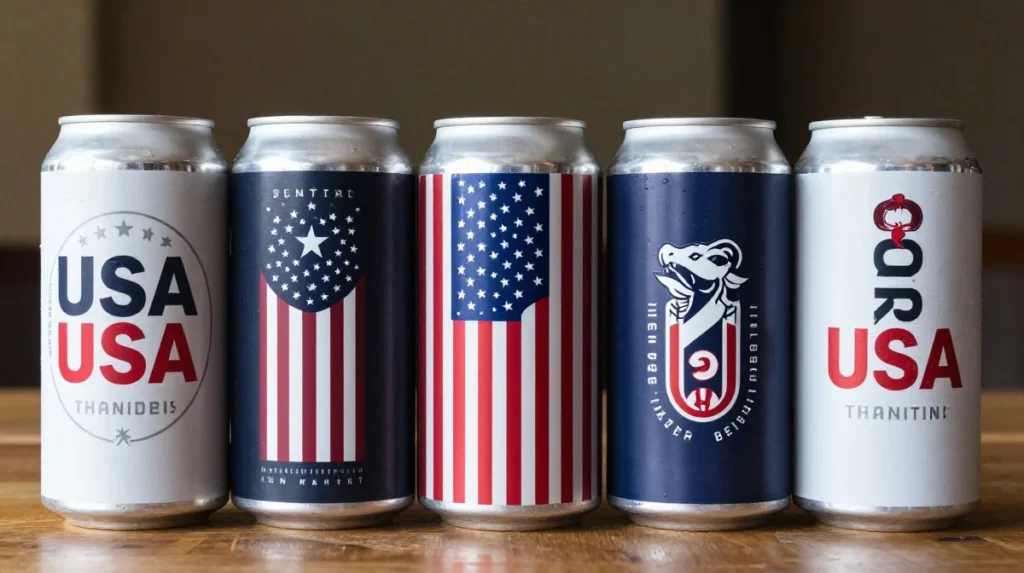

USA Beer Can Standards
The Ball Corporation and Crown Holdings set the dominant US can standards. Every American standard beer can uses the 2.602-inch (6.6 cm) outside diameter for the 12 oz, 16 oz, 19.2 oz, 24 oz, 25 oz, and 28 oz formats. The Aluminum Association and Can Manufacturers Institute (CMI) publish the official US specs that every domestic brewery follows.
American craft beer drives format diversity. The US market uses more distinct can formats than any other country. You see standard, sleek, and stovepipe cans all sharing the same refrigerator aisle.

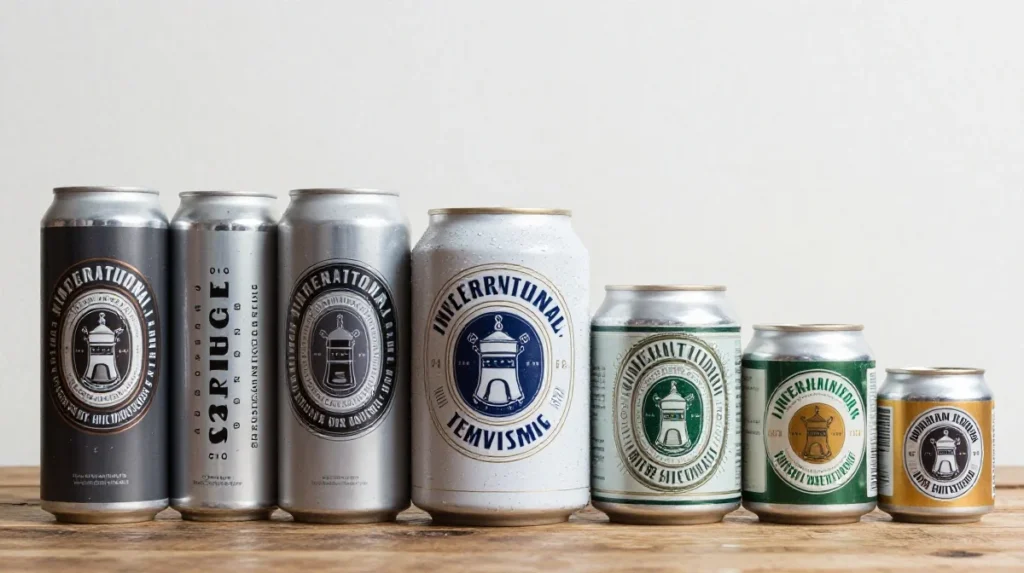

International Beer Can Sizes
International markets use different volume standards but often share identical physical dimensions with US cans. Here is how global beer can standards compare:
| Region | Common Volumes | Height | Diameter | Notes |
|---|---|---|---|---|
| USA | 12 oz, 16 oz, 19.2 oz, 24 oz | 4.812–8.812 in | 2.602 in | Most format variety |
| Europe | 330 ml, 440 ml, 500 ml | 4.528–6.380 in | 2.602 in | Metric volumes, same diameter |
| UK | 330 ml (11.15 oz), 440 ml (14.88 oz) | 4.528–5.930 in | 2.602 in | Matches EU standards |
| Australia | 375 ml (12.68 oz) | 4.921 in / 12.5 cm | 2.602 in | “Stubby” can culture |
| Japan | 250 ml, 350 ml, 500 ml | 3.740–6.380 in | 2.602 in | Very small mini cans |
The 330 ml European can stands 4.528 inches (11.5 cm) tall — slightly shorter than the American 12 oz (355 ml) standard. The diameter remains identical at 2.602 inches (6.6 cm) across all regions. This consistent diameter lets the same production equipment run cans for any market worldwide.
Australia’s 375 ml “stubby” can is slightly larger than the European 330 ml but smaller than the American 12 oz. Japan leads the world in small-format variety, offering 250 ml (8.45 oz) cans that measure just 3.740 inches (9.5 cm) tall.
Read: Pringles Can Dimensions
Read: Brake Pad Measurement
Read: Calf Measurement
Read: What Is a Barleycorn Measurement
Read: King Size Bed Measurement
Read: Full Size Bed Measurements
Frequently Asked Questions
What are the dimensions of a standard 12 oz beer can?
A standard 12 oz beer can stands 4.812 inches (12.2 cm) tall with an outside diameter of 2.602 inches (6.6 cm). The body diameter narrows to 2.343 inches (5.95 cm) in the middle section. These dimensions apply to every major brand including Budweiser, Coors, and Miller.
How tall is a 16 oz Tallboy beer can?
A standard 16 oz Tallboy stands 6.190 inches (15.7 cm) tall. The 16 oz Sleek format is taller at 6.940 inches (17.6 cm). Both formats hold 473 ml (16 fl oz) — exactly one American pint.
What is the diameter of a beer can?
Standard beer cans measure 2.602 inches (6.6 cm) in outside diameter. Sleek cans are narrower at 2.260 inches (5.74 cm). The 32 oz Crowler is the widest at 3.562 inches (9.05 cm). The consistent standard diameter ensures every can fits the same cup holder and koozie.
How does a 12 oz can compare to a 12 oz beer bottle in height?
A 12 oz standard can stands 4.812 inches (12.2 cm) tall. A 12 oz long neck bottle stands 9.0 inches (22.9 cm) tall nearly double the can’s height. The bottle’s narrow neck and long body account for the dramatic height difference despite holding the same volume.
What size are European beer cans?
The most common European beer can holds 330 ml (11.15 oz) and stands 4.528 inches (11.5 cm) tall. The 500 ml (16.9 oz) format stands 6.380 inches (16.2 cm) tall. European cans use the same 2.602-inch (6.6 cm) diameter as American standard cans.
Do sleek cans fit in a standard cup holder?
Sleek cans fit loosely in standard cup holders. The sleek format measures 2.260 inches (5.74 cm) in diameter versus the standard 2.602 inches (6.6 cm). The gap is about 0.342 inches (8.7 mm) enough that the can will rattle or tip in most vehicle cup holders designed for the standard size.
Conclusion
Beer can dimensions stay remarkably consistent across formats from the 8 oz mini at 3.625 inches (9.2 cm) tall to the 28 oz giant at 8.812 inches (22.4 cm) tall, all using the same 2.602-inch (6.6 cm) standard diameter. This practical measurement system means one koozie, one cup holder, and one production line serves every standard-diameter format from the classic 12 oz all the way up to the 28 oz.
Now that you understand beer can dimensions across every format, you can design accurate labels for any can size, plan cooler and shelf storage precisely, compare formats before purchasing or producing, and identify cans from any country by their dimensions alone.
