Beverage Can Dimensions: Sizes, Width, Heights & Diameters 2026
A standard 12 oz beverage can stands 4.812 inches (12.2 cm) tall and shows up in refrigerators, vending machines, and coolers around the world. That height is close to the length of a dollar bill, slightly shorter than a standard pencil, or about half the height of a standard laptop screen.
Whether you’re designing custom labels, sourcing cans for a craft beverage brand, or simply curious about how your favorite drink is packaged, recognizing common beverage can dimensions gives you an instant reference point.

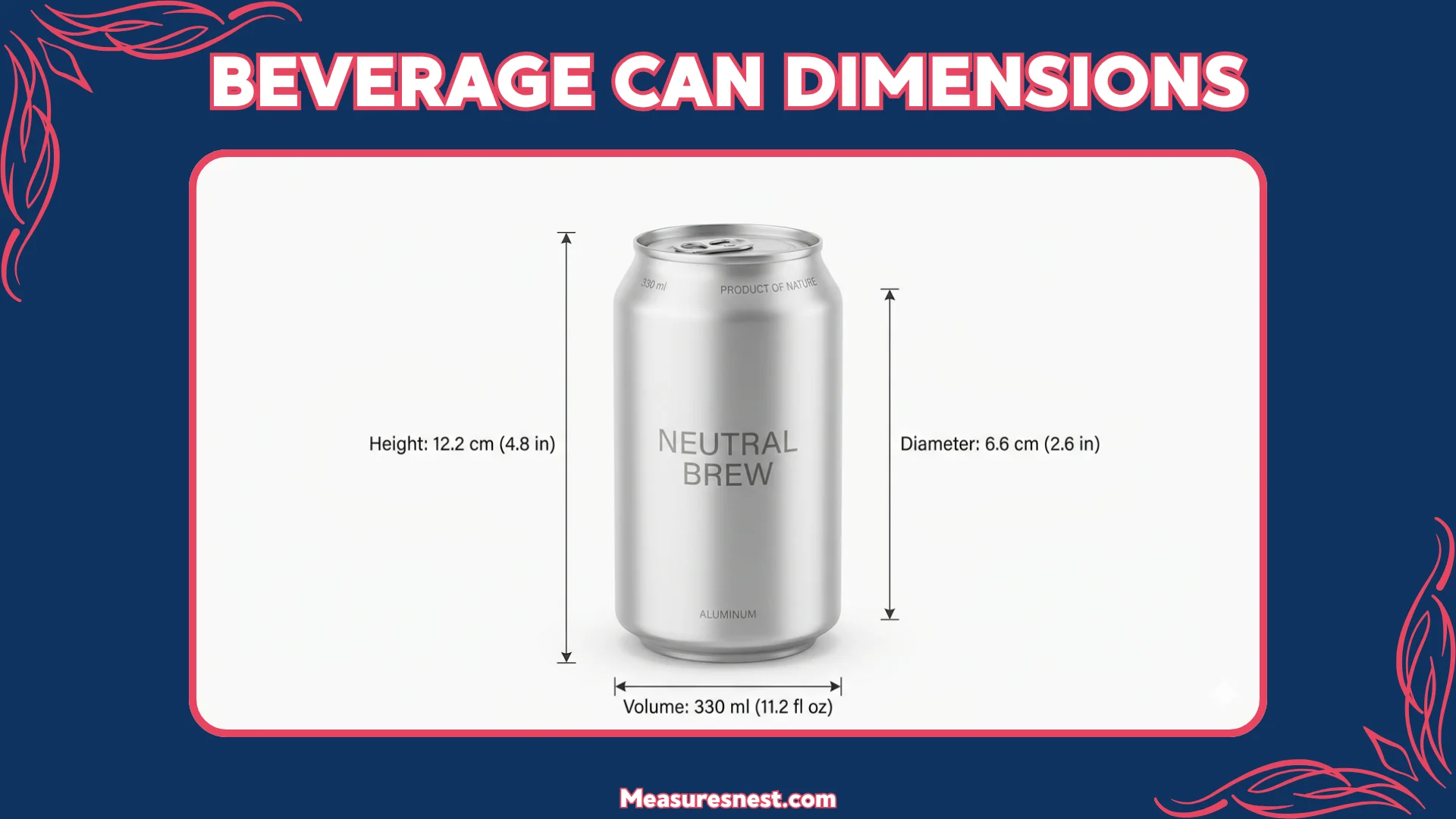

Beverage Can Dimensions
| Measurement | Inches | Centimeters | Millimeters |
|---|---|---|---|
| Standard 12 oz Height | 4.812 in | 12.2 cm | 122 mm |
| Standard 12 oz Diameter | 2.602 in | 6.6 cm | 66 mm |
| 16 oz Tall Boy Height | 6.190 in | 15.7 cm | 157 mm |
| 16 oz Tall Boy Diameter | 2.602 in | 6.6 cm | 66 mm |
| 12 oz Sleek Height | 6.125 in | 15.6 cm | 156 mm |
| 12 oz Sleek Diameter | 2.260 in | 5.7 cm | 57 mm |
| 12 oz Slim Height | 5.990 in | 15.2 cm | 152 mm |
| 12 oz Slim Diameter | 2.085 in | 5.3 cm | 53 mm |
| 7.5 oz Mini Height | 3.625 in | 9.2 cm | 92 mm |
| 7.5 oz Mini Diameter | 2.602 in | 6.6 cm | 66 mm |

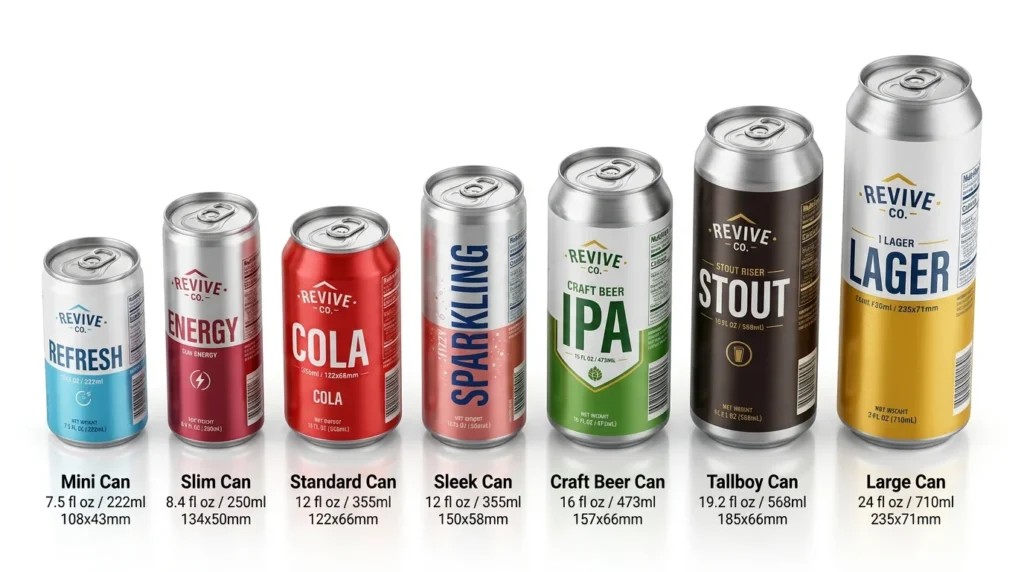

Standard Beverage Can Sizes
Beverage cans come in more sizes than most people realize. The 12 oz standard can dominates shelves in North America, but the industry also produces slim cans, sleek cans, tall boys, and mini cans. Each format serves a specific market segment and purpose.
Manufacturers follow strict dimensional standards set by industry bodies. These standards ensure cans fit perfectly into filling lines, packaging equipment, and standard coolers. You will find most cans fall into four main format families: standard, tall boy, sleek/slim, and mini.
Here is a quick comparison of all major formats:
| Format | Volume | Height | Diameter | Common Use |
|---|---|---|---|---|
| Standard | 12 oz (355 ml) | 4.812 in (12.2 cm) | 2.602 in (6.6 cm) | Soda, beer, energy drinks |
| Tall Boy | 16 oz (473 ml) | 6.190 in (15.7 cm) | 2.602 in (6.6 cm) | Craft beer, energy drinks |
| Sleek | 12 oz (355 ml) | 6.125 in (15.6 cm) | 2.260 in (5.7 cm) | Premium sparkling water, spirits |
| Slim | 12 oz (355 ml) | 5.990 in (15.2 cm) | 2.085 in (5.3 cm) | Energy drinks, diet beverages |
| Mini | 7.5 oz (222 ml) | 3.625 in (9.2 cm) | 2.602 in (6.6 cm) | Portion control, mixers |
| 8 oz | 8 oz (237 ml) | 3.875 in (9.8 cm) | 2.602 in (6.6 cm) | Juice, kids’ beverages |
Standard 12 oz Beverage Can Dimensions
The standard 12 oz can is the most recognized beverage package in the world. It holds 355 milliliters (12 fluid ounces) and fits comfortably in your hand.
Height
The standard 12 oz can stands exactly 4.812 inches (12.2 cm or 122 mm) tall. That is roughly the same height as a standard TV remote control. Most adults can wrap their hand around it from base to top without stretching.
Filling lines across North America, Europe, and Asia are calibrated precisely for this height. Changing it even slightly requires retooling expensive equipment, which is why this spec has stayed stable for decades.
Diameter
The body diameter of a standard 12 oz can measures 2.602 inches (6.6 cm or 66 mm). The top of the can — called the lid or end — is slightly narrower at 2.0625 inches (5.24 cm). This narrowing is called “necking” and reduces the amount of aluminum needed for the lid.
This diameter fits perfectly in standard car cup holders, most can koozies, and vending machine spirals. Packaging engineers design cup holders, coolers, and six-pack carriers around this exact measurement.
Circumference
The circumference of the standard 12 oz can body is approximately 8.17 inches (20.8 cm). That gives label designers about 8 inches (20.3 cm) of printable wrap-around space. Most standard can labels use this full wrap as a canvas.
Wall Thickness
Modern aluminum beverage cans have walls as thin as 0.004 inches (0.1 mm). That is thinner than a human hair. Despite this, the pressurized can resists crushing forces of up to 90 pounds (40.8 kg) when sealed and carbonated.
16 oz Tall Boy Can Dimensions
The 16 oz Tall Boy is the go-to can for craft beers and large energy drinks. It holds 473 milliliters (16 fluid ounces) — exactly one pint of liquid.
Height
A 16 oz Tall Boy stands 6.190 inches (15.7 cm or 157 mm) tall. That is just over half a foot. Place two standard 12 oz cans side by side vertically and they would reach almost the same height.
Craft breweries love the Tall Boy because it stands out on shelves next to standard cans. The extra height creates more label space and a premium, generous appearance.
Diameter
The Tall Boy shares the same body diameter as the standard 12 oz can: 2.602 inches (6.6 cm or 66 mm). This is intentional. It allows breweries to use the same filling equipment, koozies, and packaging lines for both formats.
The matching diameter also means Tall Boys fit in the same cup holders and six-pack carriers designed for standard cans. Manufacturers simply stretch the body height and keep everything else identical.
Sleek and Slim Cans
Sleek and slim cans look taller and more elegant than standard cans. Both hold the same 12 oz (355 ml) of liquid but achieve a longer, narrower profile. Premium water brands, ready-to-drink cocktails, and diet beverages use these formats heavily.
The key difference: sleek cans are slightly wider than slim cans. Both are narrower than a standard can. Brands choose these shapes to signal a premium or lifestyle-oriented product to shoppers.

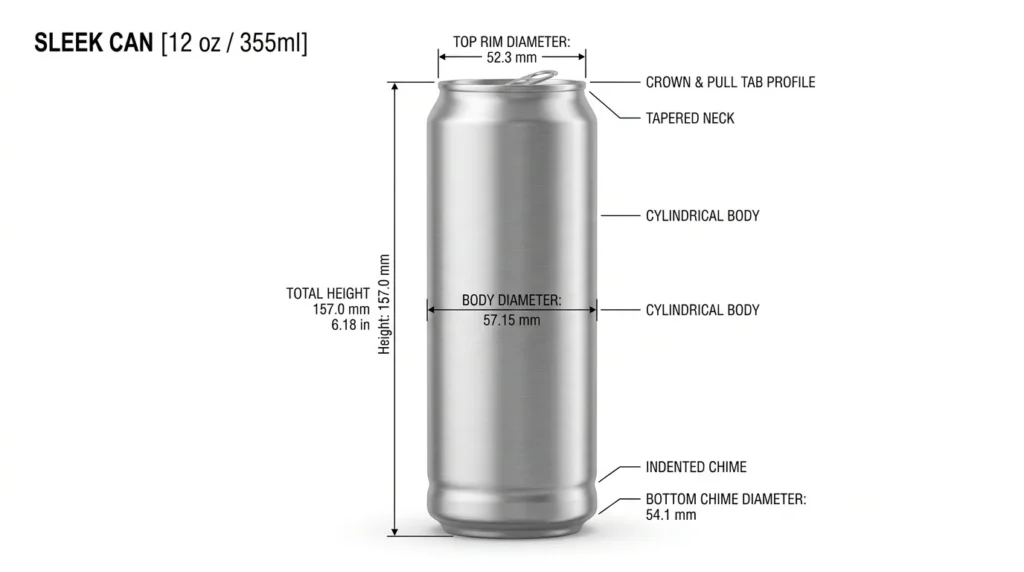

12 oz Sleek Can Dimensions
The 12 oz Sleek can holds the same volume as a standard can but looks completely different. Its tall, slender silhouette signals premium positioning.
Height: The sleek can stands 6.125 inches (15.6 cm or 156 mm) tall — almost exactly as tall as a 16 oz Tall Boy, but holding only 12 oz of liquid. This height makes it appear generous and premium on shelves.
Diameter: The body diameter is 2.260 inches (5.7 cm or 57 mm). That is about 0.34 inches (8.6 mm) narrower than a standard 12 oz can. You will notice your fingers wrap around it more easily than a standard can.
The sleek format is popular with sparkling water brands, hard seltzers, and canned wine. Its narrower profile also fits neatly into multi-packs and gift boxes.
12 oz Slim Can Dimensions
The 12 oz Slim can is the narrowest of all common formats. Energy drink brands pioneered this format in the 1990s and it remains strongly associated with that category.
Height: The slim can stands 5.990 inches (15.2 cm or 152 mm) tall. That is slightly shorter than the sleek can and noticeably taller than a standard can.
Diameter: The body diameter is just 2.085 inches (5.3 cm or 53 mm). This is the narrowest standard beverage can format available. It fits comfortably between two fingers, which is part of its appeal for active-lifestyle branding.
Slim cans hold exactly the same 12 oz (355 ml) as a standard or sleek can. The shape is entirely a branding and shelf-differentiation decision. Diet sodas, low-calorie drinks, and high-caffeine beverages frequently use the slim format.

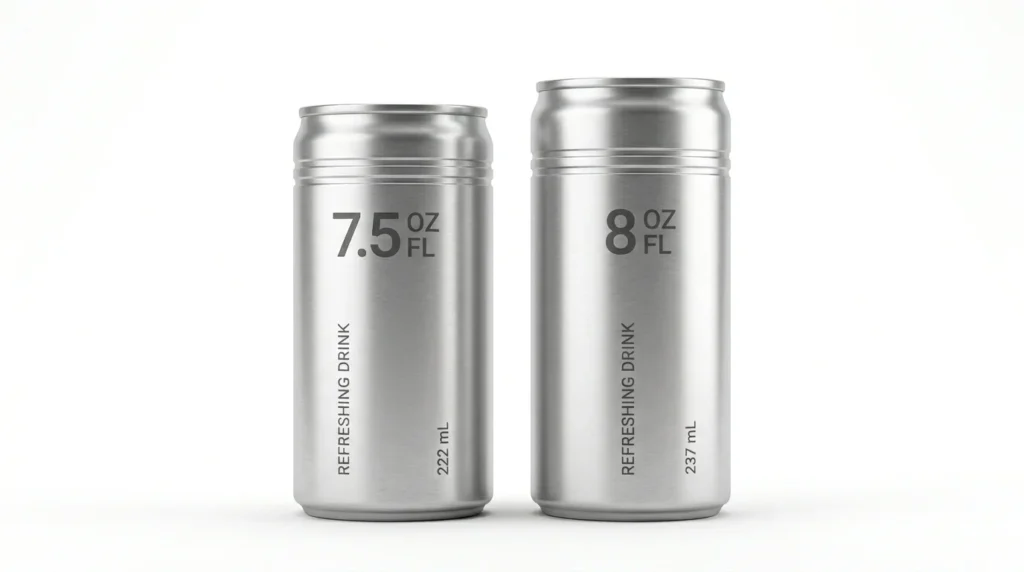

7.5 oz and 8 oz Beverage Can Sizes
Mini cans have grown steadily in popularity. They appeal to consumers who want portion control, lighter intake, or a single-serve mixer for cocktails.
7.5 oz Mini Can
The 7.5 oz mini can holds 222 milliliters of liquid. Its height is 3.625 inches (9.2 cm or 92 mm) — about the same height as a tennis ball. The diameter matches the standard can exactly at 2.602 inches (6.6 cm).
This matching diameter is practical. Mini cans run on the same filling and packaging lines as standard cans. Only the body height changes. Major soda brands offer their flagship products in this size for holiday packs and party variety sets.
8 oz Can
The 8 oz can holds 237 milliliters and stands 3.875 inches (9.8 cm or 98 mm) tall. Its diameter is also 2.602 inches (6.6 cm) identical to the standard format.
You will find 8 oz cans used for juices, children’s beverages, and imported sparkling waters. At under 4 inches (10.2 cm) tall, they fit in children’s lunch boxes and small cooler pockets with ease.

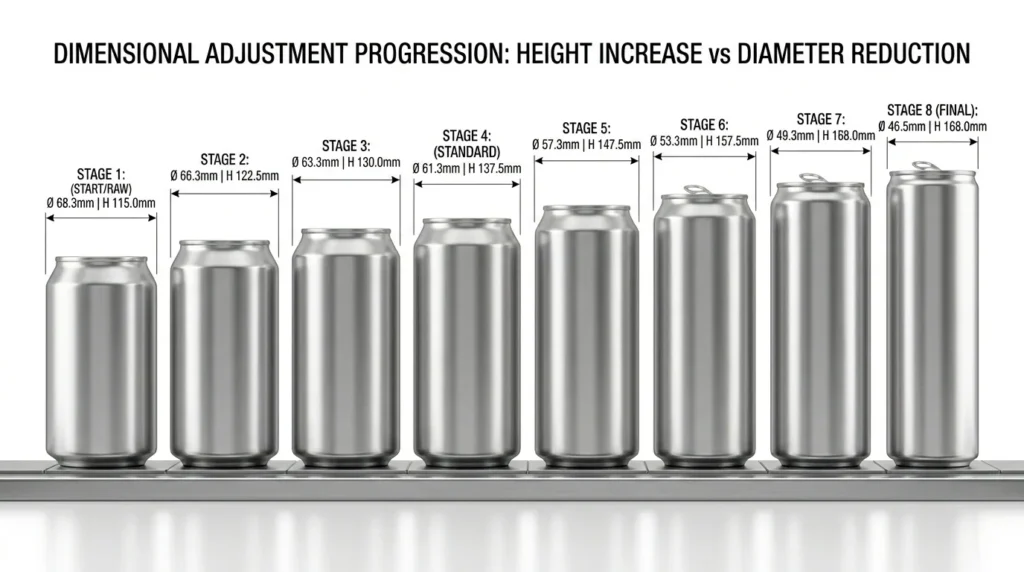

How Manufacturers Change Heights and Diameters
Changing a can’s height is relatively straightforward. Manufacturers adjust the bodymaker tooling to pull the aluminum into a taller or shorter cylinder. The diameter stays constant, which keeps filling lines, lid equipment, and end-seaming machines unchanged.
Changing the diameter is a much bigger engineering challenge. It requires new filling heads, new lids, new end-seaming equipment, and new packaging machinery. That is why most format families share a common diameter. Manufacturers invest in a new diameter only when the market opportunity clearly justifies it.
The “necking” process at the top of the can further reduces the lid diameter below the body diameter. Necking saves aluminum on the lid which is thicker than the body and reduces per-unit material costs significantly across billions of cans. Most standard cans use a 200-diameter end (2.0625 inches / 52.4 mm), while slimmer cans use a 202-diameter end (2.0625 inches / 52.4 mm) as well, standardized to reduce complexity.
Aluminum pricing, filling line efficiency, and shelf positioning all influence which dimensions a brand chooses. Craft breweries often start with the standard or Tall Boy format because tooling costs are lower and suppliers are abundant.
Read: Stair Dimensions
Read: Image Measurement
Read: Badminton Court Dimensions
Read: Bowling Lane Dimensions
Read: Food Can Dimensions
Read: White Claw Can Dimensions
Frequently Asked Questions
How tall is a standard 12 oz beverage can?
A standard 12 oz can stands exactly 4.812 inches (12.2 cm or 122 mm) tall. This height has remained consistent across North America for decades. It fits in car cup holders, six-pack carriers, and standard vending machines without any modification.
What is the diameter of a standard beverage can?
The body diameter of a standard 12 oz beverage can is 2.602 inches (6.6 cm or 66 mm). The lid diameter is slightly smaller at 2.0625 inches (5.24 cm). This difference comes from the necking process at the top of the can.
How tall is a 16 oz Tall Boy can?
A 16 oz Tall Boy stands 6.190 inches (15.7 cm or 157 mm) tall. It shares the same body diameter as a standard 12 oz can at 2.602 inches (6.6 cm). This makes it compatible with the same filling equipment, cup holders, and koozies.
What is the difference between a sleek can and a slim can?
Both sleek and slim cans hold 12 oz (355 ml) of liquid. The sleek can is slightly wider at 2.260 inches (5.7 cm) in diameter, while the slim can is narrower at 2.085 inches (5.3 cm). The sleek can is also slightly taller at 6.125 inches (15.6 cm) compared to the slim can’s 5.990 inches (15.2 cm).
How big is a 7.5 oz mini can?
A 7.5 oz mini can stands 3.625 inches (9.2 cm) tall — roughly the same height as a tennis ball. Its diameter matches a standard can at 2.602 inches (6.6 cm). This matching diameter allows mini cans to run on the same filling lines as full-size standard cans.
Why do slim and sleek cans hold the same amount as standard cans if they look different?
Slim and sleek cans achieve the same 12 oz (355 ml) volume through a taller, narrower cylinder. A narrower diameter means the can must be taller to hold the same amount of liquid. Brands choose these shapes for shelf differentiation and premium positioning, not for holding more or less liquid.
Conclusion
Beverage can dimensions span a precise range from the compact 7.5 oz mini at 3.625 inches (9.2 cm) to the towering 16 oz Tall Boy at 6.190 inches (15.7 cm). The standard 12 oz can at 4.812 inches (12.2 cm) tall and 2.602 inches (6.6 cm) wide remains the industry benchmark that all other formats are measured against.
